ScaleOut Time Windowing Library for .NET

Introduction

The ScaleOut Time Windowing Library for .NET provides a set of windowing functions for time-ordered collections of events. These windowing functions are provided as extensions methods that can operate on any IEnumerable<T> collection.

Example

using Scaleout.Streaming.TimeWindowing.Linq;

class HeartRate {
    public DateTime Timestamp { get; set; } // assumes UTC
    public short BeatsPerMinute { get; set; }
}

// Given heart-rate readings every minute, calculate the 5-minute
// moving average of a person's heart rate for the past 24 hours.

var readings = new List<HeartRate>();
// [...time-ordered readings populated here, one per minute]

var slidingWindows = readings.ToSlidingWindows(
        timestampSelector: hb => hb.Timestamp,
        startTime: DateTime.UtcNow - TimeSpan.FromHours(24),
        endTime: DateTime.UtcNow,
        windowDuration: TimeSpan.FromMinutes(5),
        every: TimeSpan.FromMinutes(1));

// print each window's boundaries and its heartbeat average:
foreach (var win in slidingWindows)
    Console.WriteLine($"{win.StartTime:t} - {win.EndTime:t}: {win.Average(hb => hb.BeatsPerMinute)}");

The library also provides convenience classes for management of collections of time-ordered elements. These classes offer automatic eviction and ordering of elements, and they are suited for scenarios where elements are only accessed and analyzed as a windowed transformation. See the Wrapper Classes section for details.

Windowing Methods

Three methods are provided to break up an enumerable collection into different kinds of time windows. These are available as extension methods in the Scaleout.Streaming.TimeWindowing.Linq namespace:

  1. ToSlidingWindows: Transforms a collection into an enumerable collection of overlapped (sliding) windows.
  2. ToTumblingWindows: Transforms a collection into an enumerable collection of fixed-duration, non-overlapping windows.
  3. ToSessionWindows: Transforms a collection into an enumerable collection of session windows.

The windowing methods accept a user-defined Func<T, DateTime> delegate that returns the time associated with each element in the collection. This timestamp is used to determine which window (or windows, in the case of the sliding windows) an element belongs to. The collection must be sorted chronologically with respect to the returned timestamp.

Each method returns a collection of ITimeWindow objects. An ITimeWindow instance is itself an enumerable collection of the elements in the source collection whose timestamps fall within the window's time span.

Sliding Windows

Sliding window functions are often used to calculate the moving average of time series data. The duration of sliding windows is larger than the period between the windows, so the period of time covered by each window overlaps with its neighbors:

sliding windows

If no elements fall in a sliding time window, that window will be empty.

To use the library's ToSlidingWindows method, the source collection must be sorted chronologically. (See the Wrapper Classes section below for details on convenient wrapper classes that keep your source collection sorted.)

public static IEnumerable<ITimeWindow<TSource>> ToSlidingWindows<TSource>(
    this IEnumerable<TSource> source,
    Func<TSource, DateTime> timestampSelector,
    DateTime startTime,
    DateTime endTime,
    TimeSpan windowDuration,
    TimeSpan every)

Parameters

source
The sequence of elements to transform.
timestampSelector
A function to extract a timestamp from an element.
startTime
Start time (inclusive) of the first sliding window.
endTime
End time (exclusive) for the last sliding window(s).
windowDuration
Duration of each time window. This is a maximum value that will be shortened for the last window(s) in the returned sequence.
every
The period of time between the start of each sliding window.

Tumbling Windows

Tumbling windows, (or "fixed" windows), divide time series data into periodic, non-overlapping windows. Unlike sliding time windows, an element in a collection of tumbling windows may only appear in a single window.

tumbling windows

If no elements fall in a tumbling time window, that window will be empty.

To use the library's ToTumblingWindows method, the source collection must be sorted chronologically. (See the Wrapper Classes section below for details on convenient wrapper classes that keep your source collection sorted.)

public static IEnumerable<ITimeWindow<TSource>> ToTumblingWindows<TSource>(
    this IEnumerable<TSource> source,
    Func<TSource, DateTime> timestampSelector,
    DateTime startTime,
    DateTime endTime,
    TimeSpan windowDuration)

Parameters

source
The sequence of elements to transform.
timestampSelector
A function to extract a timestamp from an element.
startTime
Start time (inclusive) of the first tumbling window.
endTime
End time (exclusive) for the last tumbling window.
windowDuration
Duration of each time window. This is a maximum value that will be shortened for the last window in the returned sequence.

Session Windows

The duration of a session window is not fixed; rather, it is determined by the time interval between elements: if a period of idle time elapses between elements then a new session window is created.

Session windowing is often used when processing click data or other types of user activity--if a user is inactive for too long then the session window closed. A new session window is created once user activity resumes.

Unlike sliding and tumbling window functions, a session window is never empty.

session windows

Like the other windowing fuctions, the ToSessionWindows method requires the source collection to be sorted chronologically. (See the Wrapper Classes section below for details on convenient wrapper classes that keep your source collection sorted.)

public static IEnumerable<ITimeWindow<TSource>> ToSessionWindows<TSource>(
    this IEnumerable<TSource> source,
    Func<TSource, DateTime> timestampSelector,
    TimeSpan idleThreshold)

Parameters

source
The sequence of elements to transform.
timestampSelector
A function to extract a timestamp from an element.
idleThreshold
Maximum allowed time gap between elements before a new session window is started.

Wrapper Classes

In addition to the three extension methods detailed above, the library provides three wrapper classes to aid in the management and processing of time-ordered events. The SessionWindowCollection, SlidingWindowCollection, and TumblingWindowCollection classes wrap a source collection (typically a List<T> or LinkedList<T>) and manage its elements.

These wrapper classes are intended to be used as alternatives to the library's extension methods when the underlying elements are accessed primarily as a windowed collection. It is therefore expected that the elements in the underlying source collection will only be accessed and modified through the chosen wrapper. These wrappers perform the following work on your behalf:

  • Eviction: Eviction of elements is automatically handled, as specified by the policy passed into the wrapper's constructor. Eviction is performed when the wrapper collection is constructed and when new items are added through the a wrapper's Add() method.
  • Ordering: When elements are added through a wrapper's Add() method, it is inserted into the underlying collection in the correct chronological position.

Once constructed, the wrapper can be enumerated to access its associated time windows.

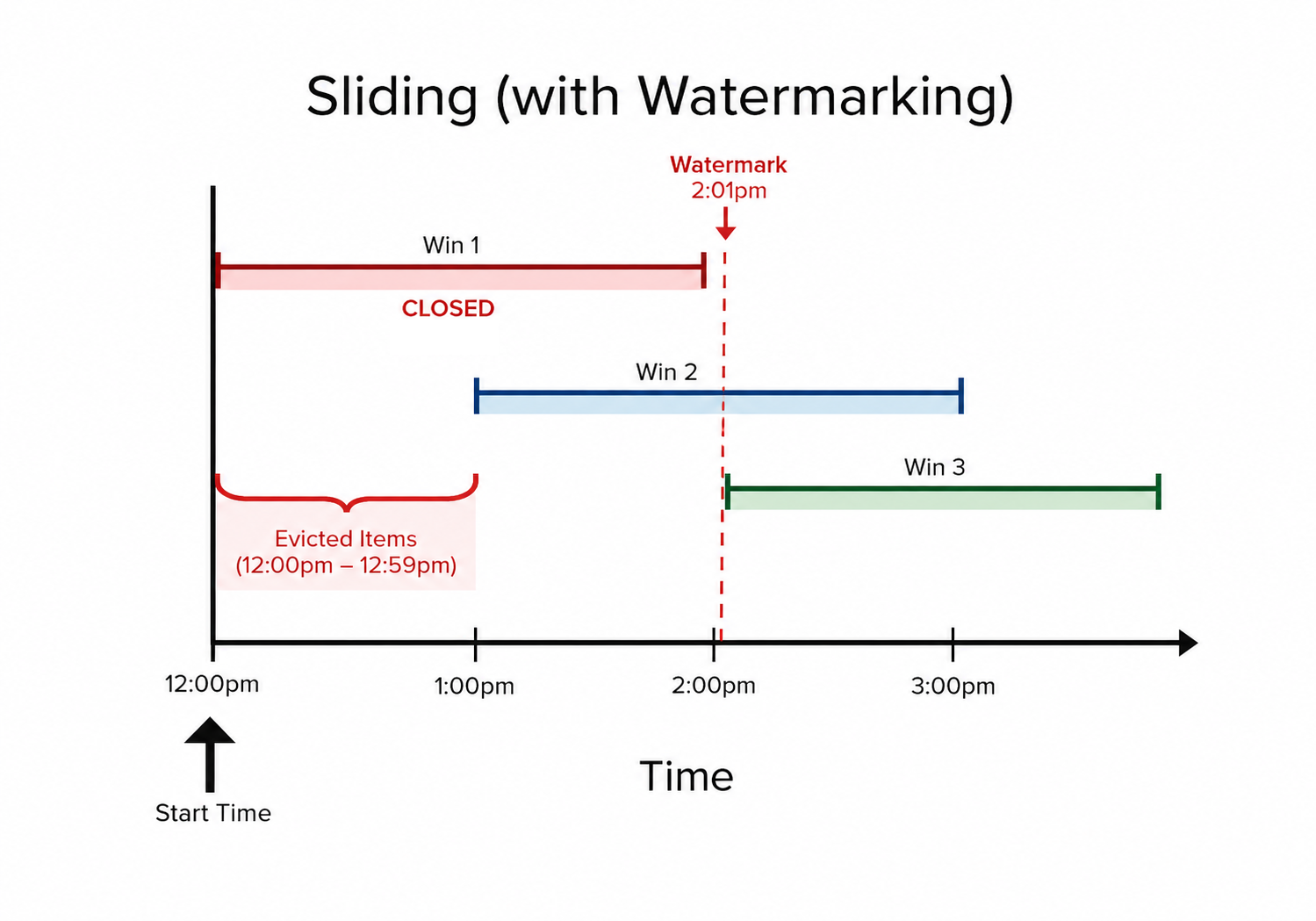

Sliding Window Wrapper

The SlidingWindowCollection<T> class provides the following constructor:

public SlidingWindowCollection(
    IList<T> source,
    Func<T, DateTime> timestampSelector,
    TimeSpan windowDuration,
    TimeSpan every
    DateTime startTime)

The parameters to this constructor are similar to the parameters to the ToSlidingWindows extension method, except that the startTime parameter defines the eviction policy for the collection as well as the starting point for the windowing transform--elements with timestamps prior to startTime will be removed from the source collection.

Also, there is no endTime parameter in the wrapper's constructor like there is in the ToSlidingWindows method. When enumerating through sliding windows exposed by the wrapper, the end time is implicitly set to the last (most recent) element in the source collection.

Once constructed, the wrapper's Add() method should be used to add elements to the collection.

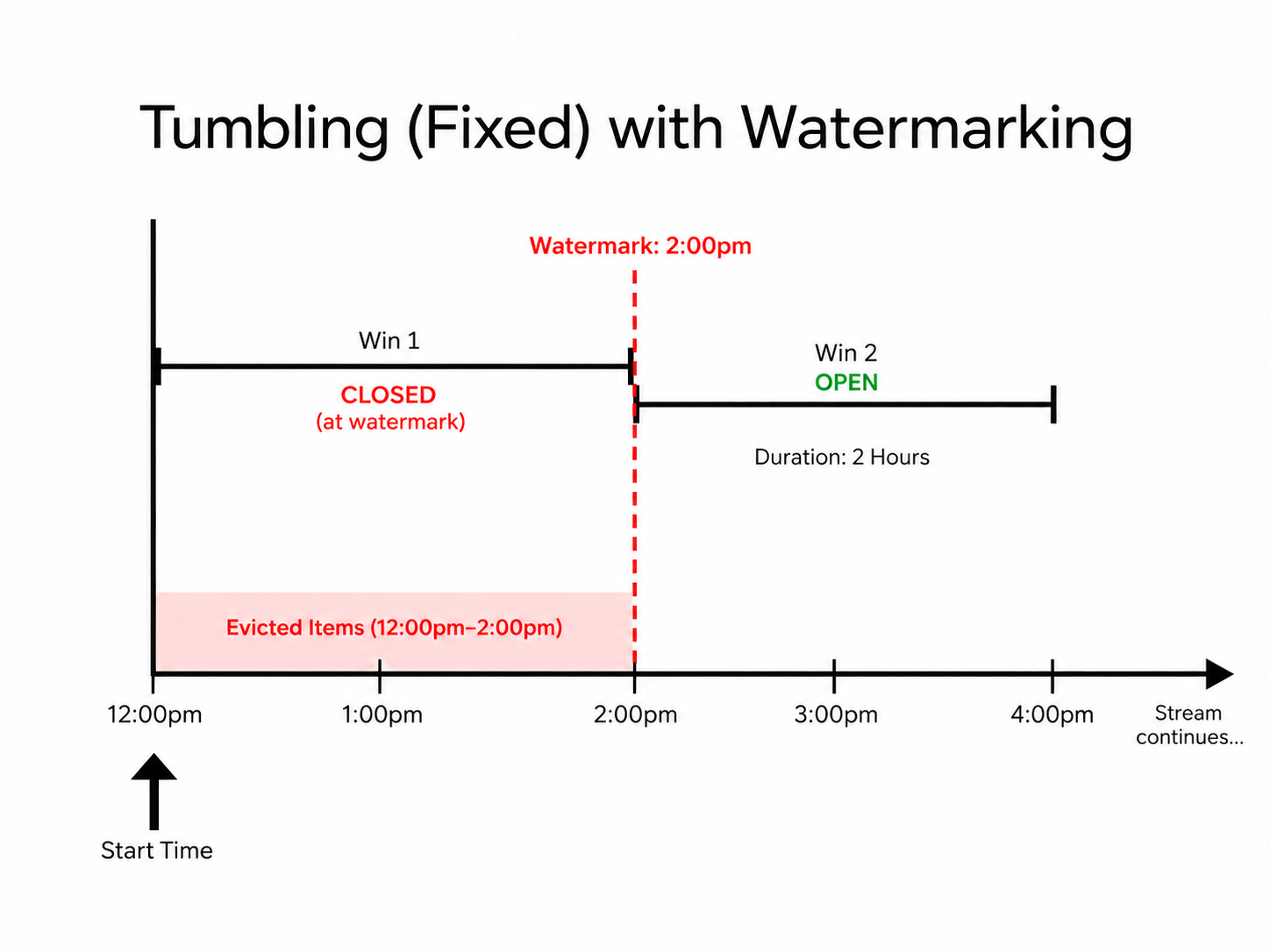

Tumbling Window Wrapper

The TumblingWindowCollection<T> class provides the following constructor:

public TumblingWindowCollection(
    IList<T> source,
    Func<T, DateTime> timestampSelector,
    TimeSpan windowDuration,
    DateTime startTime)

The parameters to this constructor are similar to the parameters to the ToTumblingWindows extension method, except that the startTime parameter defines the eviction policy for the collection as well as the starting point for the windowing transform. Elements with timestamps prior to startTime will be removed from the source collection.

Also, there is no endTime parameter in the wrapper's constructor like there is in the ToTumblingWindows method. When enumerating through windows exposed by the wrapper, the end time is implicitly set to the last (most recent) element in the source collection.

Once constructed, the wrapper's Add() method should be used to add elements to the collection.

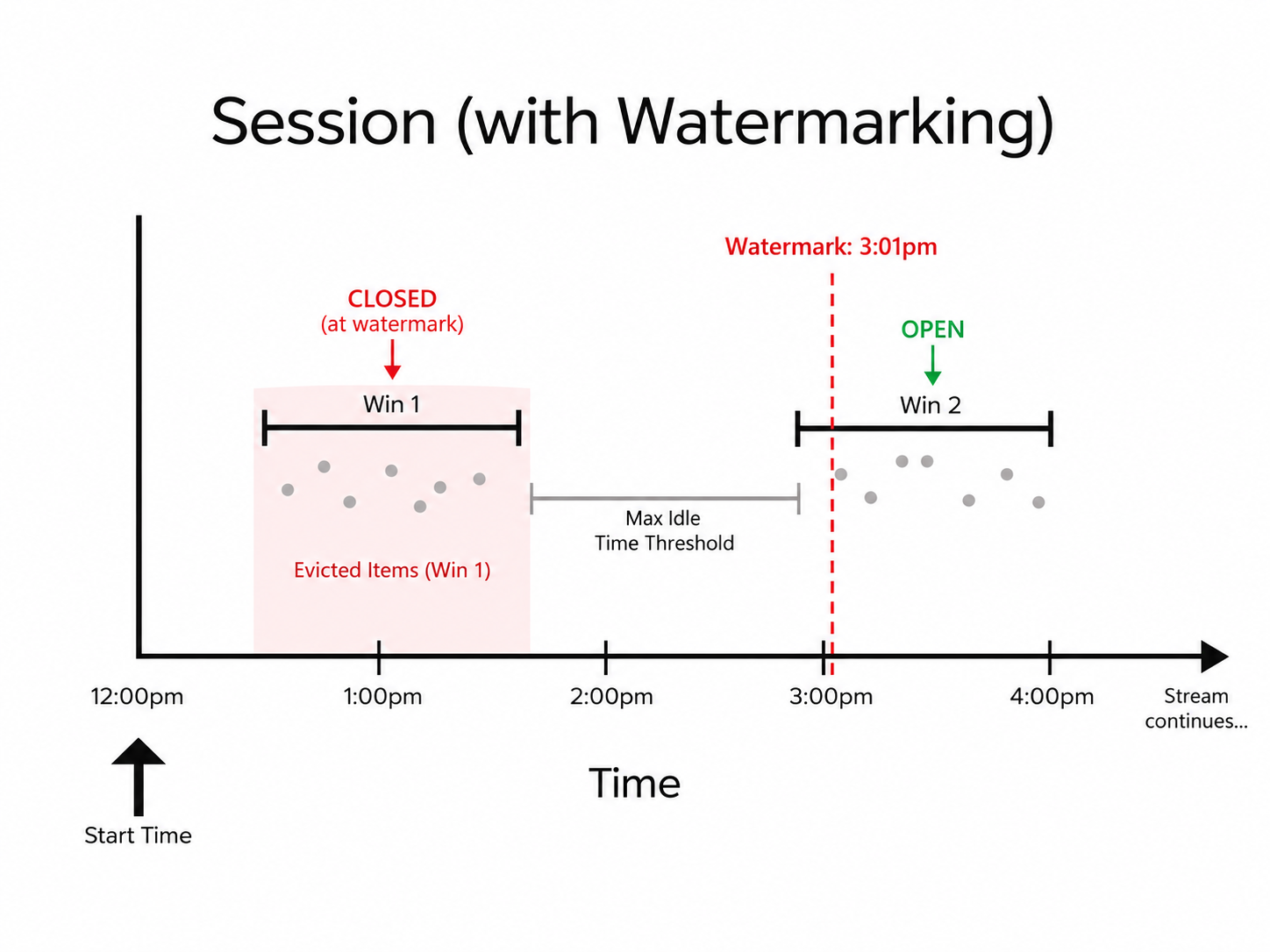

Session Window Wrapper

The SessionWindowCollection<T> class provides the following constructor:

public SessionWindowCollection(
    IList<T> source,
    Func<T, DateTime> timestampSelector,
    TimeSpan idleThreshold,
    int boundedSessionCapacity)

The parameters to this constructor are largely identical to the paramaters to the ToSessionWindows extension method, with the exception of the additional boundedSessionCapacity, which defines how many sessions worth of elements to keep in the underlying collection. If the boundedSessionCapacity is exceeded then the elements associated with the oldest session(s) at the front of the source collection will be removed.

Once constructed, the wrapper's Add() method should be used to add elements to the source collection instead of adding elements directly to the source collection. If the wrapper's Add() operation results in the creation of a new session window then it may evict elements in accordance to the wrapper's boundedSessionCapacity policy.
